Managing Workflows

Alation Cloud Service Applies to Alation Cloud Service instances of Alation

Customer Managed Applies to customer-managed instances of Alation

Alation currently supports two types of workflows:

  1. Add Object Request: An Add Object Request is used when a new object is to be added to the catalog. Currently, Add Object Requests are supported only for new glossary terms. This workflow has two major use cases:

    1. Creation of new terms: ensuring that any new term created inside a glossary goes through a review process.

    2. Association of existing terms to a glossary: ensure that for a glossary under a workflow any new or existing terms added to the glossary go through a review process before being included in the glossary.

  2. Change Request: A Change Request is used when someone has a suggested change to title, description, or any custom field available on the catalog pages of objects under the workflow.

Create an Add Object Request Workflow

To create an Add Object Request workflow:

  1. From the Apps menu, click Govern.

  2. Click WORKFLOWS to access the Workflow Center.

    ../../_images/data_governance2.png
  3. Click the + Create Workflow button, then select Add Object Request.

    ../../_images/workflow_create2.png
  4. Enter a desired title for the workflow. The title of the workflow must be unique and the field will alert you if a duplicate title already exists. Click the Next button.

    ../../_images/workflow_title2.png
  5. Under Start workflow when user adds new, select the one available option, Term, and then click Next.

    ../../_images/workflow_selectobjecttype_term.png
  6. Under Select Glossary objects to include under this workflow, choose All or Select to select specific glossaries:

    ../../_images/workflow_selectGlossaries.png
  7. If you chose All, you are given the choice to exclude specific items from the workflow:

    ../../_images/workflow_excludeItems.png
  8. Click Next.

  9. A summary of the workflow appears. Click the Add Reviewers button to specify the names or user groups from whom approval is required.

    ../../_images/workflow_addterm_summary.png
  10. Specify a minimum number of reviewers (from 1 to 9 inclusive), or specify that all reviewers are required to approve. Click Add Users to specify individual users by name, or Add Groups to specify user groups as reviewers.

    ../../_images/workflow_addterm_addreviewers.png
  11. You can allow your reviewers to skip the workflow by switching the toggle labeled Reviewers of this step can bypass the entire workflow.

    ../../_images/workflow_addterm_reviewersskip.png
  12. When you have finished adding reviewers, click Done.

    ../../_images/workflow_addterm_specifyreviewers.png
  13. Additional review steps can also be added at this point if desired by clicking the Add a Step button. When you are satisfied that the workflow is complete, click Publish.

Create a Change Request Workflow

To create a Change Request Workflow:

  1. From the Apps menu, click Govern.

  2. Click WORKFLOWS to access the Workflow Center.

    ../../_images/data_governance2.png
  3. Click the + Create Workflow button, then select Change Request.

    ../../_images/workflow_create2.png
  4. Enter a desired title for the workflow. The title of the workflow must be unique and the field will alert you if a duplicate title already exists. Click the Next button.

    ../../_images/workflow_title.png
  5. The initial workflow dialog appears. It contains a single menu, labeled Select Catalog Object. Click the label to expand the menu:

    ../../_images/workflow_selectobject.png
  6. Select a catalog object type from the menu to see the main dialog:

    ../../_images/workflow_top2.png
  7. Under Start workflow when a change suggestion is made on, either select one or more objects from the Select items menu or select All. The dialog changes to reflect the object type and any objects that can be contained within the selected object type. Data sources contain schemas, tables, and columns. Glossaries contain terms. Policy groups contain policies and data policies. Sample screenshots are shown for reference:

    Data source dialog example (version 2023.1.5 and later)

    ../../_images/workflowds.png

    Glossary dialog example (version 2023.1.7 and later)

    ../../_images/workflowglossary.png

    Policy group dialog example (version 2023.1.7 and later)

    ../../_images/workflowpg.png
  8. By default, the workflow starts when a change is suggested on an object of the selected type or any of the types contained within it. You can choose which objects trigger the workflow by clicking the object type to clear a given type. At least one type must be selected. In the following example, the workflow starts when a change is suggested on a table or column:

    ../../_images/workflow_dstabcol.png
  9. From Alation version 2023.1.5, you can specify individual fields to be included in the workflow: Title and Description fields for all object types, Policy Type or Term Type if applicable, and arbitrary custom fields. Select the specific fields you want to track, or select All to include all fields.

  10. Once you have selected the objects and fields you are tracking, you may optionally choose to exclude some specific objects from the workflow. The following example shows a Glossary workflow with two terms excluded:

    ../../_images/workflow_glosswithex.png
  11. From Alation version 2023.1.7, if you are creating or editing a workflow for Glossaries, Terms, Policies, or Policy Groups, you may allow creators to bypass the workflow by setting the toggle Creators will bypass this entire workflow. If the toggle is set, any changes to a glossary, term, policy, or policy group by the author of that item will not go through the review process and will be published directly. (This meaning of creator is unrelated to the licensing concept of a Creator.)

    ../../_images/workflow_creatorbypasson.png
  12. Confirm your selections and click Next. A dialog appears describing the steps of the workflow with a button to Add Reviewers:

    ../../_images/workflow_addreviewersbutton.png
  13. Add desired reviewers by clicking the Add Reviewers button. The Change Request Workflow: Step 1 dialog opens. You can specify a set of reviewers and a minimum number of reviews needed to move the review forward, or require that all reviewers approve before moving forward. Reviewers can be individual users, groups, people sets, or a combination of all three.

    ../../_images/workflow_changerequeststep1.png

    Note

    It is recommended that you not use only people sets as reviewers. People set reviewers are per object and in some cases may not be defined or have too few members to reach the threshold alone. If only people sets are selected as reviewers and the threshold is not met, a warning message will display.

  14. You can allow your reviewers to skip the workflow by switching the toggle labeled Reviewers of this step can bypass the entire workflow.

    ../../_images/workflow_changerequest_reviewersskip.png
  15. After adding the reviewers for Step 1, click Done. A dialog appears showing the start conditions and the Step 1 review:

    ../../_images/workflow_changerequeststep1done.png

    Additional review steps can also be added at this point if desired by clicking the Add a Step button.

  16. When the workflow has all desired steps, click the Publish button to make the workflow available to all users.

Publishing Workflows

Publishing is the final step in creating a workflow and will make the selected workflow available to all users for use and to suggest changes as necessary. Admins may choose to unpublish a workflow for a variety of reasons, such as making further edits or while planning best practices with other users and admins. When ready to restore previously created workflows that you would like to publish:

  1. From the Apps menu, click Govern.

  2. Click WORKFLOWS to access the Workflow Center.

../../_images/data_governance.png
  1. Click the three dots (…) on the row of the workflow you want to publish.

../../_images/workflow_ellipses.png
  1. Click Edit Workflow. A dialog appears where you can edit the selected workflow, if necessary.

../../_images/workflow_edit.png
  1. To proceed with publishing the workflow, click the Publish button. To discard your edits, click the Cancel button.

../../_images/change_request_reviewers.png
  1. Click the Publish button to make the workflow available to all users.

Unpublishing Workflows

A workflow can be unpublished and will make the selected workflow unavailable to all users for use and to suggest changes as necessary. Admins may choose to unpublish a workflow for a variety of reasons, such as making further edits or while planning best practices with other users and admins. All active change requests will be suspended when the workflow is in an unpublished state. For previously created workflows that you would like to unpublish:

  1. From the Apps menu, click Govern.

  2. Click WORKFLOWS to access the Workflow Center.

../../_images/data_governance.png
  1. Click the three dots (…) on the row of the workflow you want to unpublish.

../../_images/workflow_unpublish.png
  1. Click Unpublish Workflow. A message appears to confirm your wish to unpublish the selected workflow.

../../_images/workflow_unpublish_conf.png
  1. To proceed with unpublishing the workflow, click the Unpublish button. To retain the workflow as-is, click the Cancel button. Once the Unpublish button is selected, the workflow is no longer available to users and cannot receive suggested changes.

../../_images/workflow_unpublished.png

Deleting Workflows

Deleting of workflows can also be accomplished from the Workflow Center. Please note that when deleting a workflow, that although the resulting actions from the workflow are retained (a suggested change to a field that was accepted and implemented for example), the workflow history is also removed. History of change suggestion, approval, rejection, and deletion are also removed from view upon associated workflow deletion.

To delete workflows:

  1. From the Apps menu, click Govern.

  2. Click WORKFLOWS to access the Workflow Center.

../../_images/data_governance.png
  1. Click the three dots (…) on the row of the workflow you want to delete.

../../_images/workflow_ellipses_editdelete.png
  1. Click Delete Workflow. A warning message appears informing you that this is a permanent deletion.

../../_images/workflow_delete_conf.png
  1. To proceed with deleting, type “DELETE” in all caps in the text field.

  2. Click the Delete Workflow button.

Renaming Workflows

To rename workflows:

  1. From the Apps menu, click Govern.

  2. Click WORKFLOWS to access the Workflow Center.

../../_images/data_governance.png
  1. Click the three dots (…) on the row of the workflow you want to rename.

../../_images/workflow_ellipses_editdelete.png
  1. Click Rename Workflow. A dialog appears where you can rename the selected workflow.

../../_images/workflow_title_rename.png
  1. To proceed with your renamed workflow, click the Save and Close button. To discard your edits, click the Cancel button.

Editing Workflows

To edit workflows:

  1. From the Apps menu, click Govern.

  2. Click WORKFLOWS to access the Workflow Center.

../../_images/data_governance.png
  1. Click the three dots (…) on the row of the workflow you want to edit.

../../_images/workflow_ellipses_editdelete2.png
  1. Click Edit Workflow. A dialog appears where you can edit the selected workflow.

../../_images/workflow_edit2.png
  1. To proceed with your edited workflow, click the Publish button. To discard your edits, click the Cancel button.

    Note

    By default, all pending suggestions are deleted when a workflow is edited and republished. Starting with version 2025.1.2, Alation admins can enable an alternative behavior that preserves pending suggestions. For more information, see Retaining or Removing Pending Suggestions.

Retaining or Removing Pending Suggestions

Applies from version 2025.1.2

When you modify and republish a workflow, the default behavior is that any pending suggestions associated with that workflow are deleted.

Starting with Alation version 2025.1.2, your Alation admins may enable a new feature that gives you control over this process to ensure you don’t lose potentially valuable pending suggestions while editing workflows.

On how Server Admins can enable the alternative behavior on an Alation instance, see Enable Delete Pending Suggestions.

Note

Alation Cloud Service customers can request server configuration changes through Alation Support.

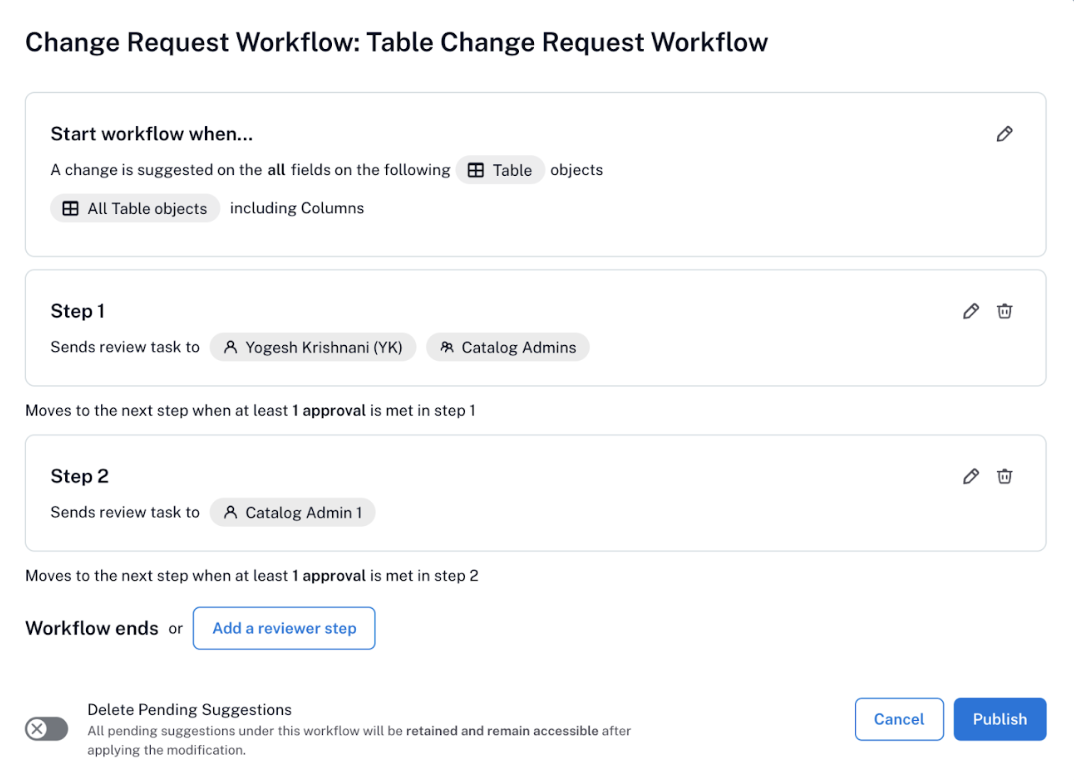

If this feature is enabled in your Alation instance, you will see the Delete Pending Suggestions toggle in the workflow editor dialog when modifying a workflow:

  • Toggle Off (default): The toggle is initially set to Off. If you leave the toggle Off and save your workflow changes, any pending suggestions will be retained.

  • Toggle On: If you switch the toggle to On before saving your workflow changes, any pending suggestions will be deleted.

    ../../_images/Workflows_Editing_DeletePendingSuggestions.png

Activate Delete Pending Suggestions

You can choose to delete all associated pending suggestions upon saving your changes. You enable the Delete Pending Suggestion mode if you don’t want to retain any pending suggestions after you apply modifications to the workflow.

To delete pending suggestions:

  1. Before publishing the modifications to the workflow, locate the Delete Pending Suggestions toggle in the workflow editor dialog.

  2. Set this toggle to the On position.

    • Setting the toggle to On will permanently delete all pending suggestions associated with this specific workflow after re-publishing.

    • These deleted suggestions will no longer be accessible to authors or reviewers.

  3. Publish the edited workflow.

Deactivate Delete Pending Suggestions

You can choose to retain all associated pending suggestions upon saving your changes.

To preserve pending suggestions:

  1. Before publishing your modifications to the workflow, locate the Delete Pending Suggestions toggle in the workflow editor dialog.

  2. Ensure it’s set to Off or set it to the Off position.

    • Setting the toggle to Off will retain all pending suggestions associated with this specific workflow after re-publishing.

    • These suggestions will be accessible to authors or reviewers.

  3. Publish the edited workflow.

Reviewing Retained Suggestions

When reviewing suggestions that were retained after a workflow modification, keep the following in mind:

  • You can still view and access these retained suggestions. They will proceed through the workflow according to the steps defined in the currently published version of the workflow structure.

  • Modifications made to a specific step within the workflow during the editing process can directly impact any suggestions pending at that step. The content, state, or available actions for a suggestion might change if the step it is associated with was modified. See below for examples of specific workflow editing cases.

A Step Is Deleted

Use Case

State of Pending Suggestion After Republishing

The suggestion was located at a step that was deleted.

The suggestion’s content is preserved. The suggestion is moved to Step 1 of the updated workflow.

The suggestion was located at a step that was not modified or deleted.

The suggestion remains at its current step, unchanged.

A Step Is Modified

Use Case

State of Pending Suggestion After Republishing

A reviewer who previously approved a suggestion at this step is removed from the step.

The prior approval from the removed reviewer is no longer displayed in the user interface for suggestions at this step.*

A new reviewer is added to the step.

Existing approvals from other reviewers assigned to the step are preserved. The newly added reviewer can now provide their approval for suggestions at this step.

* The behavior of pending suggestions is slightly different for active and completed steps:

  • Active steps—When a reviewer who has previously approved a suggestion is removed, their approval will not be displayed in the user interface and will not count toward meeting the step’s approval threshold.

  • Completed steps—When a reviewer who has approved a suggestion is replaced in a step that was completed:

    • The step remains as completed

    • The user interface will show the new reviewer list

    • The approval count remains the same (for example, “1/1 approvals”)

    • No checkmark will appear next to the new reviewer(s)

    • The suggestion maintains its position in the workflow and isn’t returned to the previous step.

Approval Thresholds Are Modified

Use Case

State of Pending Suggestion After Republishing

The threshold (required number of approvals) is decreased.

Existing approvals are preserved. Pending suggestions remain at the current step, even if the number of existing approvals already meets or exceeds the new, lower threshold. Further workflow action (like subsequent approvals or transition) is required to move the suggestion.

The threshold (required number of approvals) is increased.

Existing approvals are preserved. Pending suggestions at the current step now require additional approvals to meet the new, higher threshold before they can proceed to the next step.

Objects Under the Workflow Are Changed

Use Case

State of Pending Suggestion After Republishing

An object with pending suggestions is removed from the workflow’s scope, and governance is no longer required for changes to this object.

The author cannot view the suggestion on the page of the object removed from the workflow.

  • Direct edits to the object are now permitted.

  • If direct edits and suggestion approvals conflict, the most recent change takes precedence.

  • Reviewers can still view, approve, or reject the existing pending suggestion.

  • Full change history is available via field history.

A new object is added to the workflow’s scope.

No impact on any existing pending suggestions, as they belong to objects already under workflow governance before this change.

Handling Stalled Suggestions

In certain cases, when you change both the reviewers and the number of required approvals for a workflow step at the same time, a pending suggestion might get “stalled.” This means the suggestion has enough approvals according to the updated workflow configuration, but it can’t move forward automatically.

Here’s an example showing how a suggestion can get stalled:

  1. Before the change:

    • A workflow step needs 2 approvals.

    • Reviewer A and Reviewer B work on this step.

    • A suggestion at this step has one approval from Reviewer A.

  2. The workflow is changed:

    • You edit the workflow step and remove Reviewer B.

    • At the same time, you change the number of needed approvals to 1.

  3. After saving the change:

    • The suggestion now meets the new rule (one approval needed, and it has one from Reviewer A).

    • However, the suggestion may stay at this step without moving forward. This can happen because the system needs certain conditions to be met to move suggestions automatically. Reviewer A already approved before the change, and Reviewer B was removed. There might be no assigned reviewer left who can take the final action needed to make the suggestion move forward automatically.

When workflow edits like this cause a suggestion to meet the approval count but not move forward automatically, this is currently expected.

To fix a stalled suggestion, change the workflow one more time or ask the author to resubmit it.

Change the Workflow

Edit the workflow step again and add one or more reviewers. After you save the changes, a newly added reviewer can then approve or take other actions needed for the suggestion. This helps the suggestion move forward following the updated workflow rules.

Ask the Author to Resubmit

Contact the person who first made the suggestion and ask them to delete the stuck suggestion and submit it again as a new suggestion. The new suggestion will go through the workflow based on the current rules.

Viewing Workflow Data in Alation Analytics

From Alation version 2023.1.5, you can view workflow data in Alation Analytics. Three tables with workflow data are available in the public schema:

  • workflows summarizes all existing workflows

  • workflow_requests summarizes the progress of triggered workflows

  • workflow_request_actions summarizes the actions taken during a triggered workflow

The latter two tables provide a history of workflows as they are triggered and worked through.
